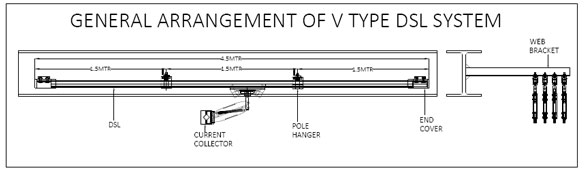

V type single pole conductor system is a DSL system which can accommodate large cross section of conductors these can accommodate 92sq mm to 200sqmm of copper conductor for wide range of heavy duty applications.

These systems are specially recommended for rough handling and high current applications special high temperature insulation can be given. This can withstand up to 80degree centigrade.

V type Insulated conductor rails range from 60 to 1000 A. These rails are suitable for supplying power for a wide range of applications, e.g., multiple cranes in one bay, heavy capacity cranes, and transport installations with several lifting and conveying devices, amusement rides, Coal/coke pusher cars and many more

Silverline Metal Engineering Pvt. Ltd. is a well known manufacturing, supplying, exporting and trading firm of V Type Shrouded DSL systems. V type single pole conductor system is a DSL system which can accommodate large cross section of conductors these can accommodate 92sq mm to 200sqmm of copper conductor for wide range of heavy duty applications.


Applications of V Type DSL

- Multiple cranes in one bay
- Heavy capacity cranes
- Transport installations with several lifting and conveying devices,
- Amusement rides
- Coal/coke pusher cars and many more
- Rough handling & high current functioning


Features of V Type DSL :

- Quick and easy installation
- Horizontal and vertical installation
- Insulated conductor bars are touch proof.
- No exposed live parts shrouded ip21.
- Suitable for indoor and outdoor installation
- Bolted and pin type available
- Cover is designed to shed from water and dust
- High temperature 90 degree centigrade

V Type Available in

Copper

500 amp

800 amp

1000 amp

1250 amp

2000 amp
